Automatic optical inspection TV600

Automatic optical inspection TV600
Automatic optical inspection TV600
Product Code : TV600
Brand Name : TORCH
Product Description

Technique parameter:

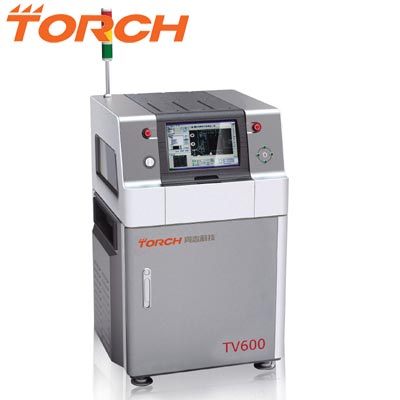

   Automatic optical detector TV600 includes five parts: three-axis servo drive system, hardware control systems, optical automatic identification systems, high-precision optical inspection system which is made up of industrial-grade optical camera and the body. The high precision lead rail and screw rod which are from Japan THK are applied in three-axis drive system; effective guarantee of delivery accuracy. Automatic optical inspector can make sure high transmission accuracy; it is suitable for inspecting unqualified components, independent parts, chips and so on. It improves production efficiency and quality.

Technology features:

  • Place PCB
    • Splint device with no barrier makes the circuit board pick and place convenient, boundless card board device with patent that can clamp circuit board components which are zero margins.
  • asynchronous testing function
    • Confirming testing result artificially, at the same time testing next PCB which can save testing time.
  • refill function
    • Every component can be set many standard templet, which is suitable for multi-material and soldering.
  • choose MARK discretionarily
    • Besides traditional rotundity、rectangle、crisscross and triangle marks, the characteristic signs are used for marks discretionarily.
  • discretional angle measure
    • Measuring from discretional angle is suitable for all components、solder and bridge testing
  • Optimize automatic route
    • To ensure the camera with the shortest and fastest way testing, Camera walking position is optimized based on intelligent machine learning methods.
  • Divide up IC pin and independent components foot

model

TV600

PCB size

40*40 mm -500*600 mm

Thickness range

0.5~5mm,it can extend 8

The height of

± 40mm

min component

0201

transportation

servo motor + ball bearing screw rod

width

Auto/ manual

testing item

Missing,wrong、misoriented component、error position observe、damage、
polarity error、insufficent solder 、over solder、jointing solder、IC
solder、Chromatic circle testing、OCR word identify 、bar code and so on

the fastest

15cm2(20 cm2/s optional)

angle

0-360 °

Camera pels

15um/ pel (20 um

light source

3 color 4 angle LED light

camera

CCD digital camera head

Identify bar code

Code39、Code128、Inter leaved20f5、EAN12、PDF-417、Data Matrix

Linear ground distance height

890~1020mm

Communication device at front and rear

SMEMA standard or tailor-made

operation Windows XP or Windows2000
Power supply AC220V,50Hz
Environment 5℃- 39℃
Environment 5% - 90%
platform height no
weight 750kg
Dimension 1000*1000*1500mm
Optional testing result printer、SPC module, offline program software, repair station
Error offset range ±1mm (MARK error offset)
Space of PCB 2.5~3mm
Max PCB weight 3kg
