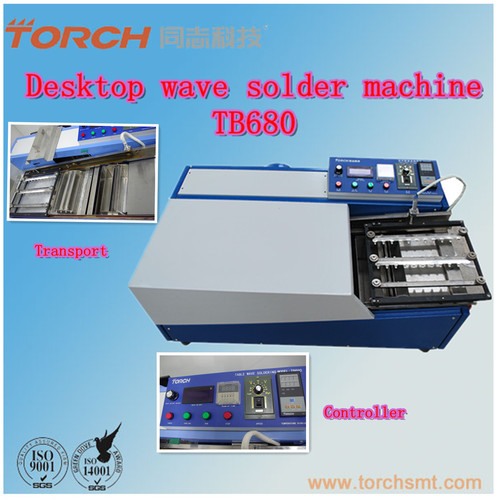

Desk wave soldering machine TB680 for PCB

Desk wave soldering machine TB680 for PCB
Desk wave soldering machine TB680 for PCB
Product Code : TB680
Brand Name : TORCH
Product Description

Introduction】:

 TB680 has been developed by Torch, aiming at the practical status of the current soldering technology inland. It occupies the vacancy of the small automatic wave soldering inland. It adapts to the research and production in research center, war industry, middle- and small-sized corporation, small private corporation and other electronic production companies. The whole machine is a desk-type. The reasonable frame takes up little room. It has complete functions and it is cheap, however energy-saving with high efficiency. Besides TB680 is easy to operate and reliable in soldering so that it could be widely used, especially suitable for small and middle amount of production. TB680 could be the best device to replace the soldering iron by hand and the dip-soldering with tin pan.

  Compared with bigger ones, TB680consumes less energy. Quickly tin melting, easy to operate, simple to repair as well as maintain, automatic self-protection.

Technical parameter for TB680

Model

TB680

The max power consumption

3Kw

Solder pot capacity

37Kg

PCB width (L×W)(mm)

200 X 270mm (Max)

Temperature range

200~300

Preheating temperature

90~130℃

Wave height adjust range

3~ 8mm

Melt time

60min

Spray work mode

froth

Power supply

220v 50Hz

Conveyor speed

0.5~ 2m /min CTV

Dimension

840 X 540 X 380mm

Weight

70Kg
