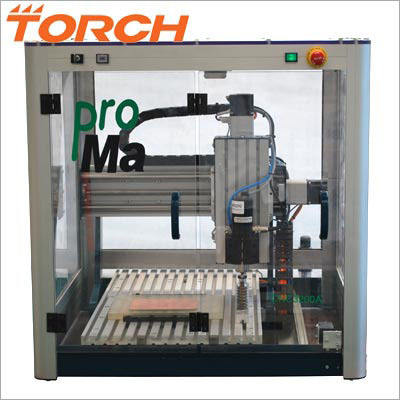

Germany Proma PCB Plate Making Machine

Germany Proma PCB Plate Making Machine
Germany Proma PCB Plate Making Machine
Product Code : CNC3200A
Brand Name : TORCH
Product Description
We are renowned Manufacturer, Exporter & Supplier of a quality assured assortment of Germany Proma Pcb Plate Making Machine. Our provided range is best suited for double side PCB (Printing Circuit Board) and takes several minutes to cut one PCB. Following industry defined guidelines, our trained professionals fabricate this machine utilizing advance machines, modern technology and top rated material. Moreover, post manufacturing process, the Germany Proma Pcb Plate Making Machine is thoroughly checked upon various parameters by our expert quality checkers. In line with customer's' different requirements, we offer this machine in a wide range of specifications and at affordable prices.

Features:
  • Swift Operations
  • Functional Accuracy
  • Optimum Strength
  • Enhanced Durability

Technology parameters :

  • Min line diameter4mil0.1 mm
  • Min line width:0.15mm
  • Minimum insulation spacing0.15mm
  • Repeated precision:0.02mm
  • Min hole diameter:0.15mm
  • Transmission resolution:0.001mm
  • Work table 310x410x130mm ,work size :500x375mm
  • Spindle speed:10000-60000rpm infinitely adjustable, spindle power:200w,can up to 250w.
  • Three axis speed :100x100x100mm
  • Automatically replace tools,9 pcs tools, 3mm-3.175mm handle ,can add to max 36pcs tools, automatically install card.
  • Drilling speed: up to 100pc /min
  • Transmission way: standard configure Germany precision screw and three axis controller with high precision step motorpneumatic tools chuck, fabrics hood.
  • Flatness compensation: the flatness of PCB make sure the precision.
  • Lighting device : with lighting device ,convenient to view the engraving process.
  • Dust collection device : professional dust collection device to make sure internal cleanness ,which continent to view the engraving process . can use with vacuum worktable (optional).
  • Software: with professional automatic tool, multiaxial engraving software, easy to input ncp, plt, din 66025 format.
  • With protective cover, can view at 360 angel ,also with safety switch to make sure the operator' safety.
  • Operate system:win98/2000/xp
  • Min memory:512mb
  • Handheld magnifying glass: magnification 40 times, with mm scale and lighting .
  • Special air pump: with 30l air cans, max air pressure is 8 bar, air flow is 100 l/min.
  • Dimension :700x700x700mm
  • Speed of no load: 100mm/s
  • Trough mill speed :6mm/s
