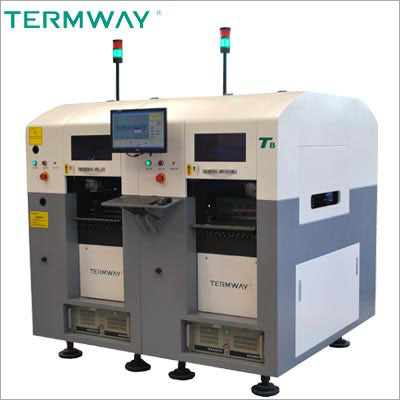

High Precision Eight Speed Placement Machine

High Precision Eight Speed Placement Machine
High Precision Eight Speed Placement Machine
Product Code : 01
Brand Name : TERMWAY
Product Description

We are enlisted among one of the most eminent Manufacturer, Exporter & Supplier of a superior quality range Automatic Multi-Function High Precision Eight Speed Placement Machine. The offered machine is designed with top-notch quality raw materials and ultra-modern technology as per the set quality standards. Our quality experts meticulously check this product under different parameters to make sure that the product is free from all defects. Moreover, we provide customization facility on Automatic Multi-Function High Precision Eight Speed Placement Machine to our valuable customers at a reasonable rates.

Features:

  • Excellent Accuracy
  • Easy To Maintain
  • Compact Design
  • High Strength

Specification :

Mounter head

8 heads

Mount area

50mm X 50mm, 350mm X 350mm, Once Plate feeding
50mm X 50mm, 1200mm X 350mm, Optional Multiple Plate feeding

Z axis max move range

30mm

Typical speed

10000cph--15000cph

Theoretical Max mount speed

22000cph

Moving System

X axis moving coil motor + linear encoder
Y axis servo motor drive + ball screw + linear encoder

X.Y axis precision

+0.001mm

Repeat mount precision

+0.015mm

Position manner

Visional position

Component available

Minimum 01005-38 x 38 x 8.5mm (48 x 48 optional)

Programme method

Automatic data import/Video learning/Keyboard input

Type of component

MAX104 pcs GFTA-08S feeder +4 pcs IC

Feeder NO.

1.MAX104 pcs of GFTA-08S feeder
2.Single group adjustable feeder MAX90 pcs GFTA-08S feeder
3.Double group adjustable feeder MAX76 pcs GFTA-08Sfeeder
4.3 pcs IC tray,MAX78 pcs GFTA-08S feeder
5.4 pcs IC tray,MAX52 pcs GFTA-08S feeder
6.Single group adjustable feeder,3 pcs IC tray,MAX64 pcs GFTA-08S feeder

IC tray NO.

The maximum number 4pcs

Operation system

WINDOWS XP/WIN7 32bit

Compressed air

80psi (0.5Mpa, gas flow ≥160L / M)

Power

380v, 50Hz, 25kw

Weight

1700kg

Dimension

1685(L)x1550(W)x1440(H)
